S-20 2D Barcode Scanner (USB only)

Our S-20 barcode scanner is the corded type using a USB connection and a laser system for reading the barcodes or QR codes. The USB cable is about 1.65m long and is permanently attached to the device. It is a 1D/2D barcode scanner and can scan QR code and even barcode on screen. Because it is equipped with auxiliary illumination, it can be used in all lighting environments and even at night. The reading distance can be as far as 20cm.

The barcode scanner can be used by plugging the USB cable to Windows compatible systems or POS systems.

Types of Decoding:

1D: EAN13, EAN8, UPC-A, UPC-E0, UPC-E1, Code128, Code39, Code93, Interleaved 2 of 5, Industrial 25, Matrix 2 of 5, Code11, CodeBar, MSI, RSS-14, RSS- Ltd, RSS- Exp, Standard 2 of 5, Plessey, Chinapost 25, and GSI Composite.

2D: QR Code, Data Matrix (DM), PDF417, Han Xin, Micro PDF417, Micro QRCode, MaxiCode, Aztec Code, and Code16K.

Technical Data:

• Material: Mostly plastic, electronics
• Colour: Orange/black combination
• Scanning mode: Manual/continuous
• Interface: USB
• Connection: Wired
• Power on indicator: Yes
• Decoding type: 1D, 2D, QR code and screen code
• Scan element: CMOS
• Code reading density: greater or equal to 5mil
• Cable length: 1.65m (high quality thick cable)
• System Compatibility: Cash register, Windows 7/8/10

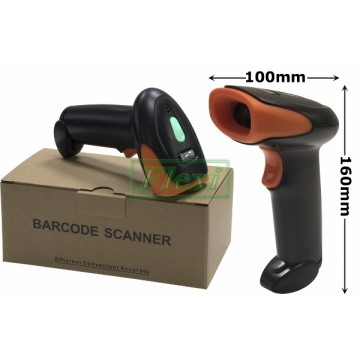

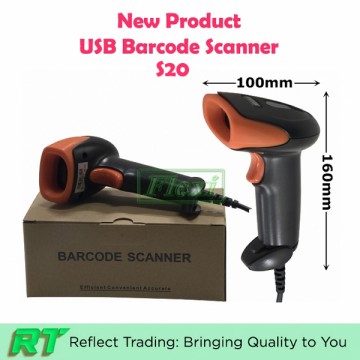

• Dimension: 67mm x100mm x 160mm
• Package contents: 1x USB barcode scanner with USB cable, instruction/product leaflet

A handheld barcode scanner is a portable electronic device designed for the purpose of quickly and accurately capturing information from barcodes. There are wireless type as well as corded type using mostly a USB cable connected to the computer or cash register or POS system. Some consists of both type of communication method.

Barcodes are visual representations of data, typically in the form of black and white parallel lines of varying thickness. These scanners utilize technology to read and interpret the information encoded in these barcodes. The same for QR codes.

Other forms of barcodes, one-dimensional 1D or 2D barcodes can also be scanned. Some even can scan QR codes as well as barcodes on screen. Most of these devices do not need special software or app installation. They are mainly used for capturing information and are widely used in library, restaurants, supermarkets, warehouses and logistics setups.

Handheld barcode scanners play a crucial role in industries such as retail, logistics, healthcare, and manufacturing by streamlining processes, improving accuracy, and reducing the time required for data entry.

Warranty: 6 months from date of purchase - factory defects only
